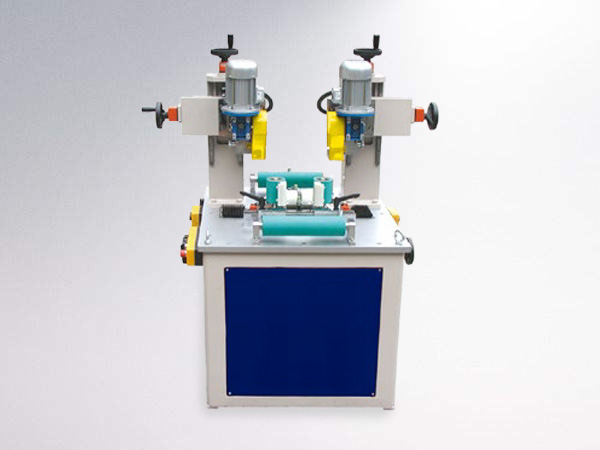

Model |
JYT.G240-B |
| Profile Cross Section (Maximum) |
240 × 180 mm |
| Feeding Speed |
0 ～ 160 m/min |
|
Diameter of Reamer |
Φ80 mm |
|
Adjustable Range of Reame |
Height：0 ～ 180 mm Width：0 ～ 240 mm |
|
Air Pressure |
0.6 MPa |
|
Total Power |
1.55 kW |
|
Voltage |
380 V |
|
Dimension (L*W*H) |
1280 × 840 × 1510 mm |
|
Weight |
680 kg Approx. |
NOTES: Customized design according to customers’ demand. These parameters are for conventional configuration. The actual parameters of the equipment are subject to the ex- factory products. Please provide clear indication in the contract for any special requirements.
